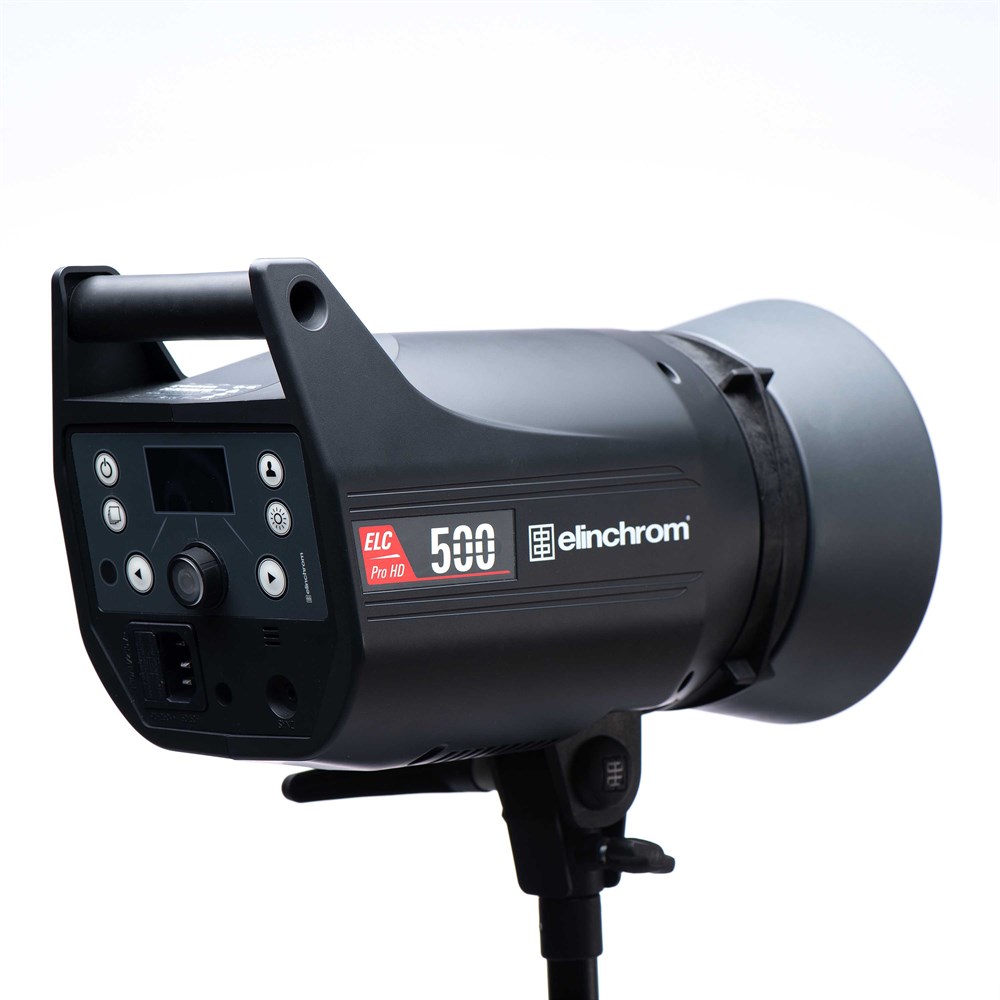

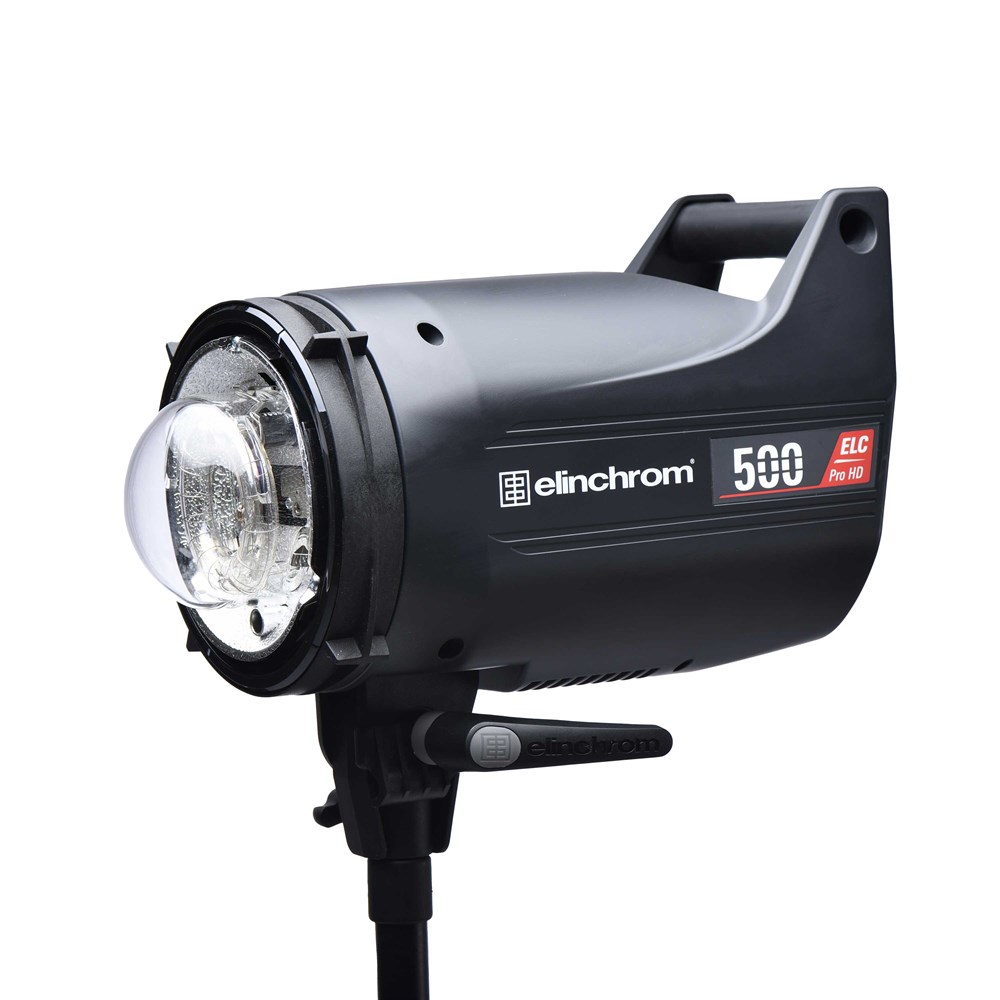

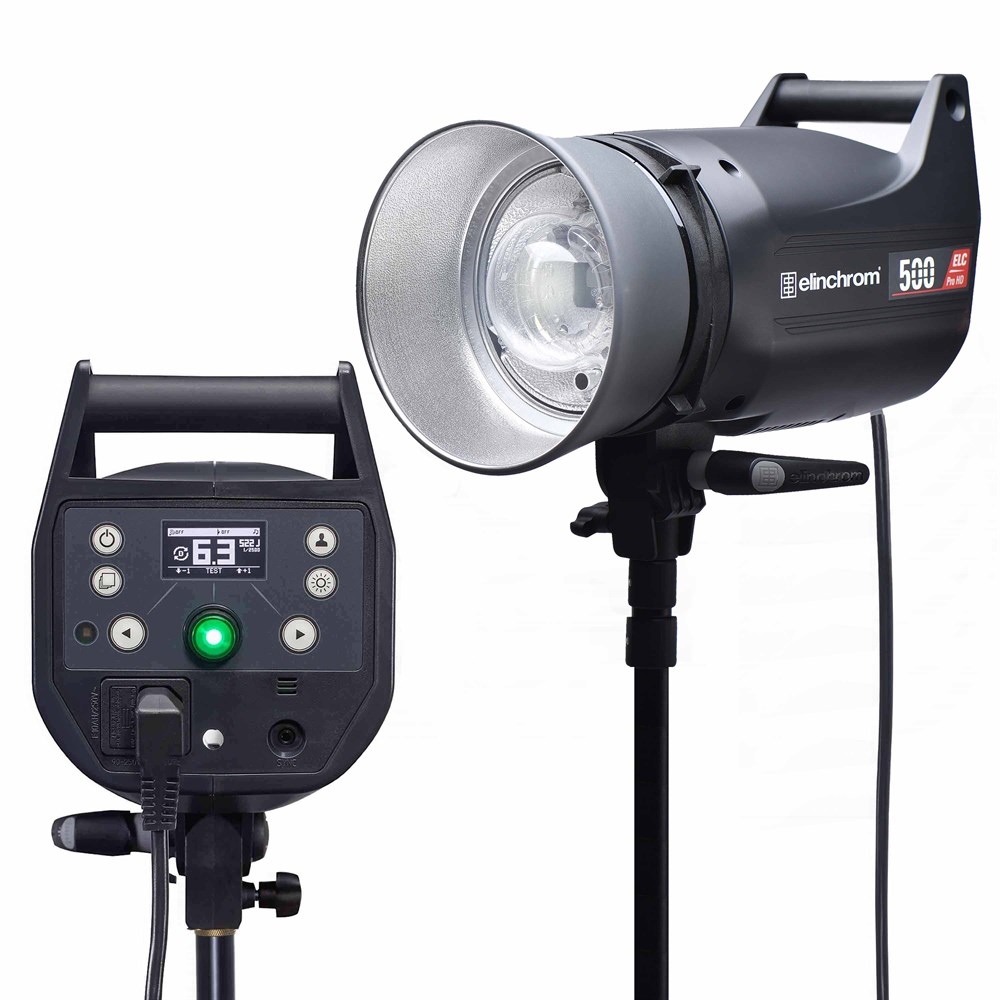

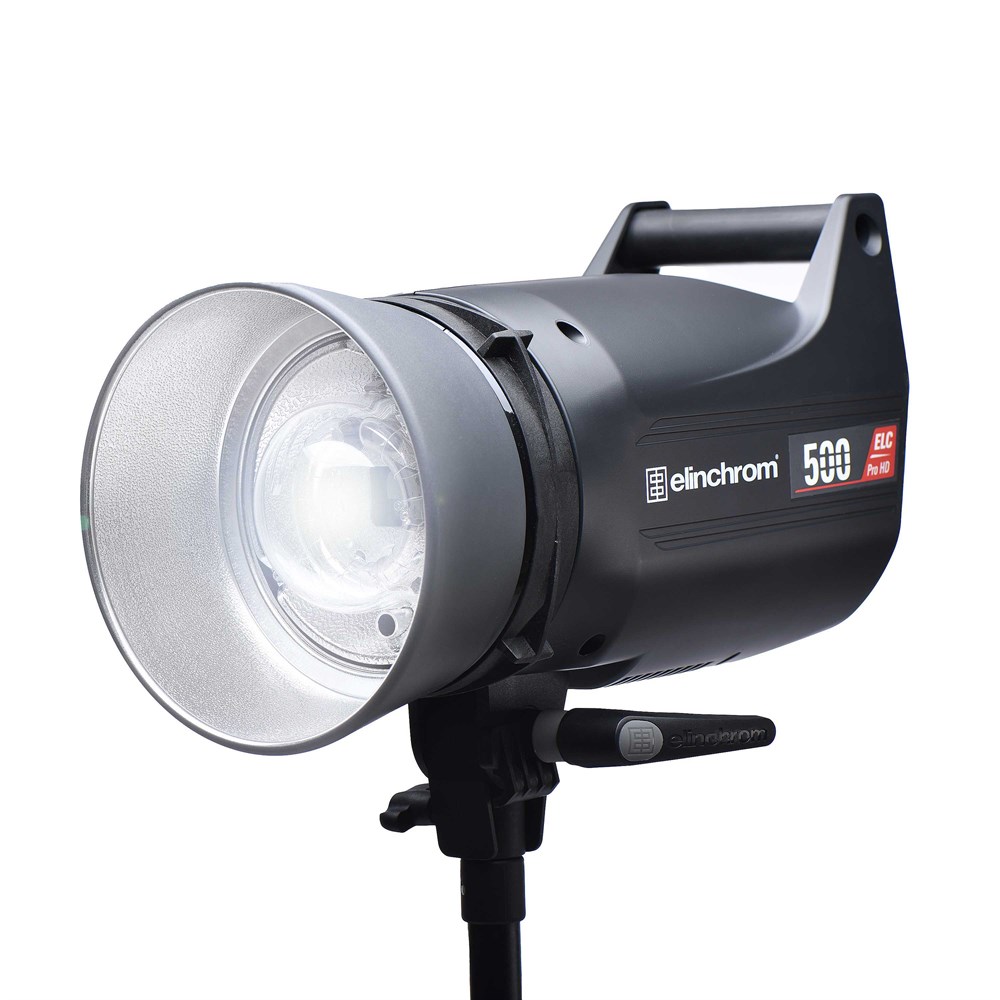

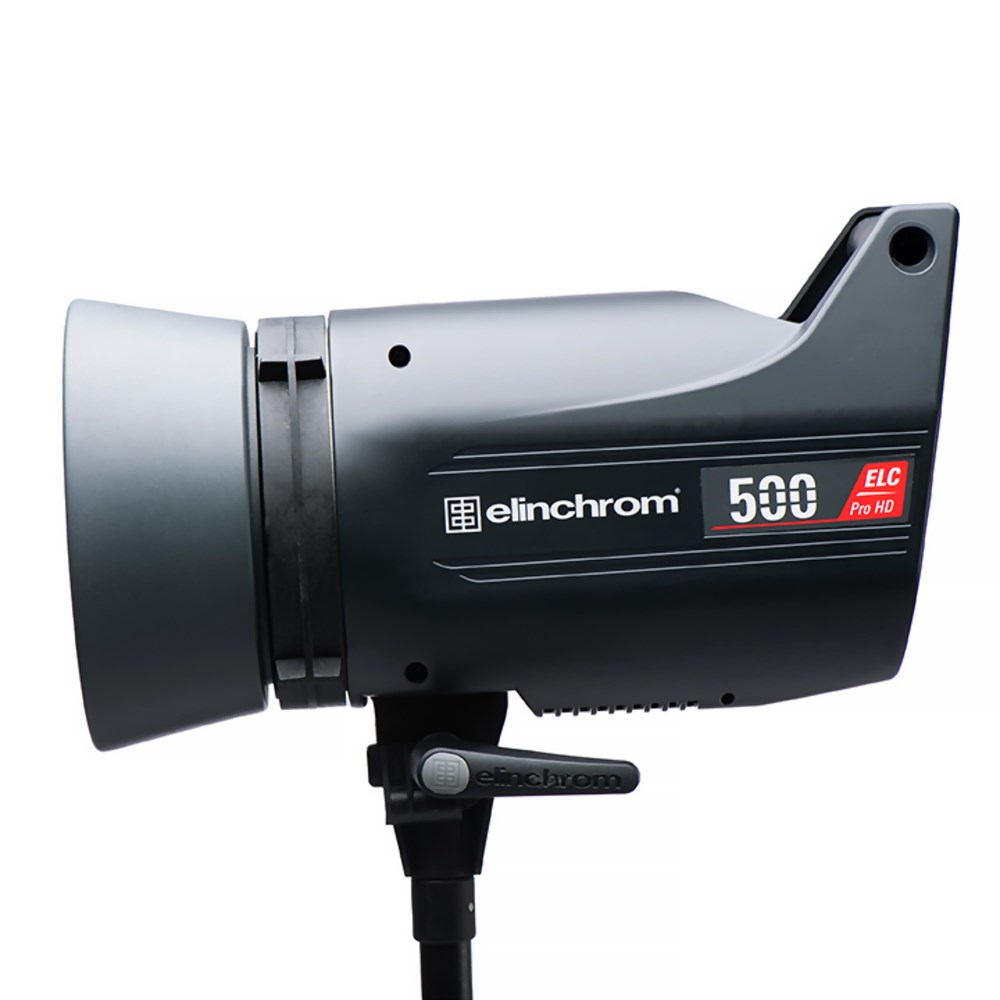

Elinchrom ELC PRO HD 500 To Go Set. These units are the highest performing compacts from Elinchrom. Equipped with an OLED display for an easy and precise user expe-rience the ELC Pro HD benefits from cutting edge technology. Recycling times are lightning fast at 0.6 seconds to full power while Swiss precision guarantees consistent power time after time, shot after shot. But hardware isn’t all. The software built into this unit gives you the freedom to configure the ELC to your individual style of shooting, for every application. This set includes the latest Elinchrom Skyport transmitter Plus. A strong and robust design which enables photographer to simply trigger and adjust flash power up to 200 m (656 feet) away, optimize reception by its swivel functionality and is powered by AA batteries.
- Lightning fast recycling
- Navigate with ease
- Superfast flash durations
- Widest power range
- Perfect color and exposure accuracy
Video Elinchrom ELC PRO HD 500
Features
- Superfast flash durations across the complete power range with visual confirmation on the OLED display
- ELC Pro HD 500: up to 1/5000s flash duration
- Huge power range - 7 f-stops
- User selectable and even shorter recycling times. Now you will never miss a shot!
- Even better colour and power stability
- Unique OLED power display for information and clarity
- Three unique creative modes; Strobo mode, up to 20 Hz
- Delayed mode, from 0.001 – 10s, for second curtain sync and other effects
- Sequence mode, up to 20 units can be synchronized in sequence to keep up with the fastest motordrive at up to the full power of the flash
- All special features utilize the full flash curve with normal colour balance
- User replaceable plug-in flashtube
- Multi-voltage auto-detection : 90-270 V (excluding modelling lamp)

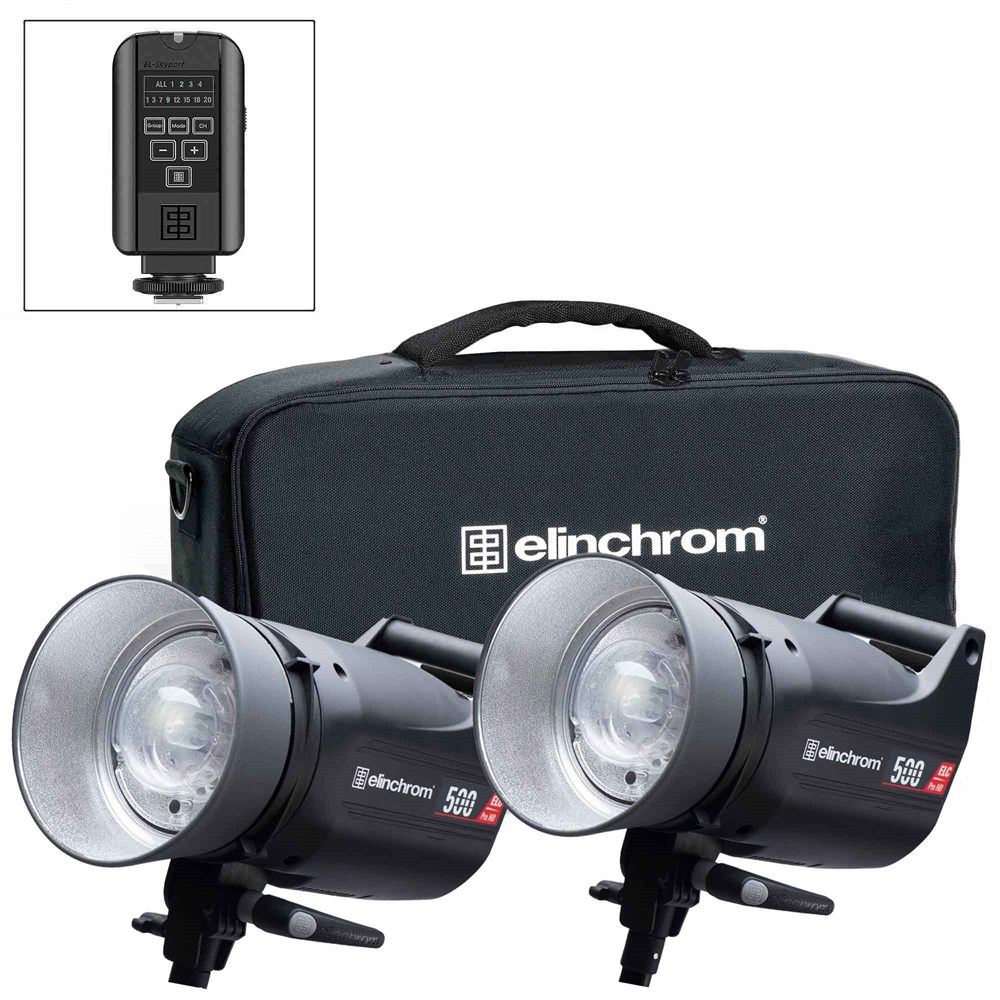

Set configuration
- 2x ELC Pro HD 500; incl. 300 W lamp*, protective cap, sync cord and mains cable
- 2x Glass dome transparent
- 2x Wide reflector 16 cm 90°
- 1x EL-Skyport Transmitter Plus
- ProTec Location Bag
*Note: Use only the EL-23022 modelling lamp with the ELC Pro HD. Similar lamp models may be available on the market, but they do not meet Elinchrom's specifications. Using incorrect lamps can cause serious damage to your flash unit. To ensure proper functionality and maintain your warranty, always use the original EL-23022 component.
| Specifications Elinchrom ELC Pro HD 500 |
| Energy (Ws/J) |
8 - 500 WS |
| F-Stop (1m, 100 ISO, reflector 48°) |
64.8 |
| Power range Ws |
7 |
| Flash duration t0.5 in sec. |
Min. power: 1/2940 — Max. power: 1/2330 |
| Best flash duration |
1/5000 sec at power setting 3.1 |
| Recycling |
0.05 to 0.6 sec |
| Max. frames per s. at min.power |
20 |
| Colour temperature in K° |
5500 |
| Auto power dumping |
Yes |
| Power stability |
± 0.1% |
| Voltage |
Multivoltage 90 – 265 V |
| Modelling lamp mode |
Free, proportional, VFC: -0.5 - -2.0 f-stop |
| Modelling lamp 230 V |
300 W / GX 6.35 - 23022 |
| Flashtube |
S-Type, Omega Plug-in, user replaceable - 24084 |
| EL-Skyport |
Built-in transceiver, 20 frequency channels and 4 groups |
| Sync Voltage |
5V |
| Sync Socket |
3.5 mm |
| Fan cooled |
Yes |
| Optional glass dome frosted |
Yes, 24917 |
| Umbrella fitting |
Centered 7mm and additional 8mm bracket on the tilt head |
| Max. power consumption (230 V / 50 Hz) during charge |
Slow: 350W // Default: 700W // Fast: 875W |
| Pure sine battery converter DC/AC: Slow charge |
600W with Halogen |
