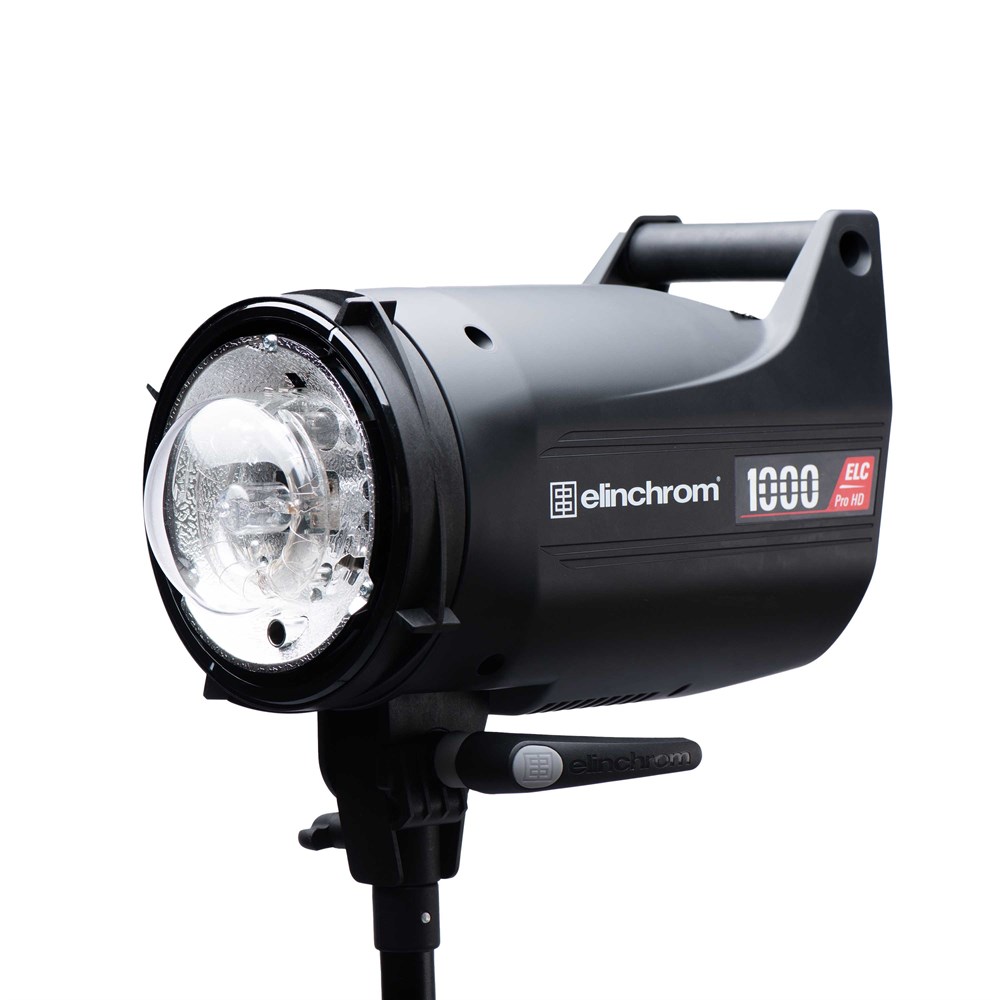

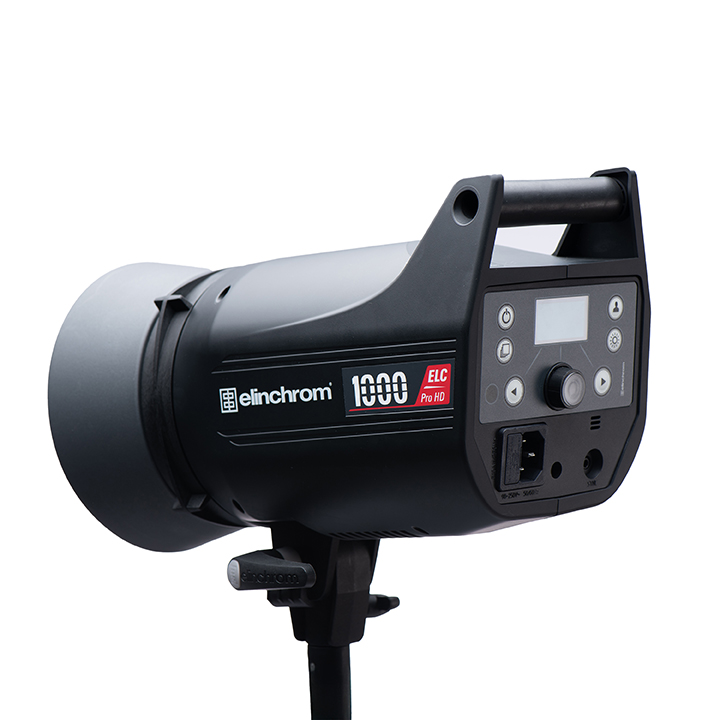

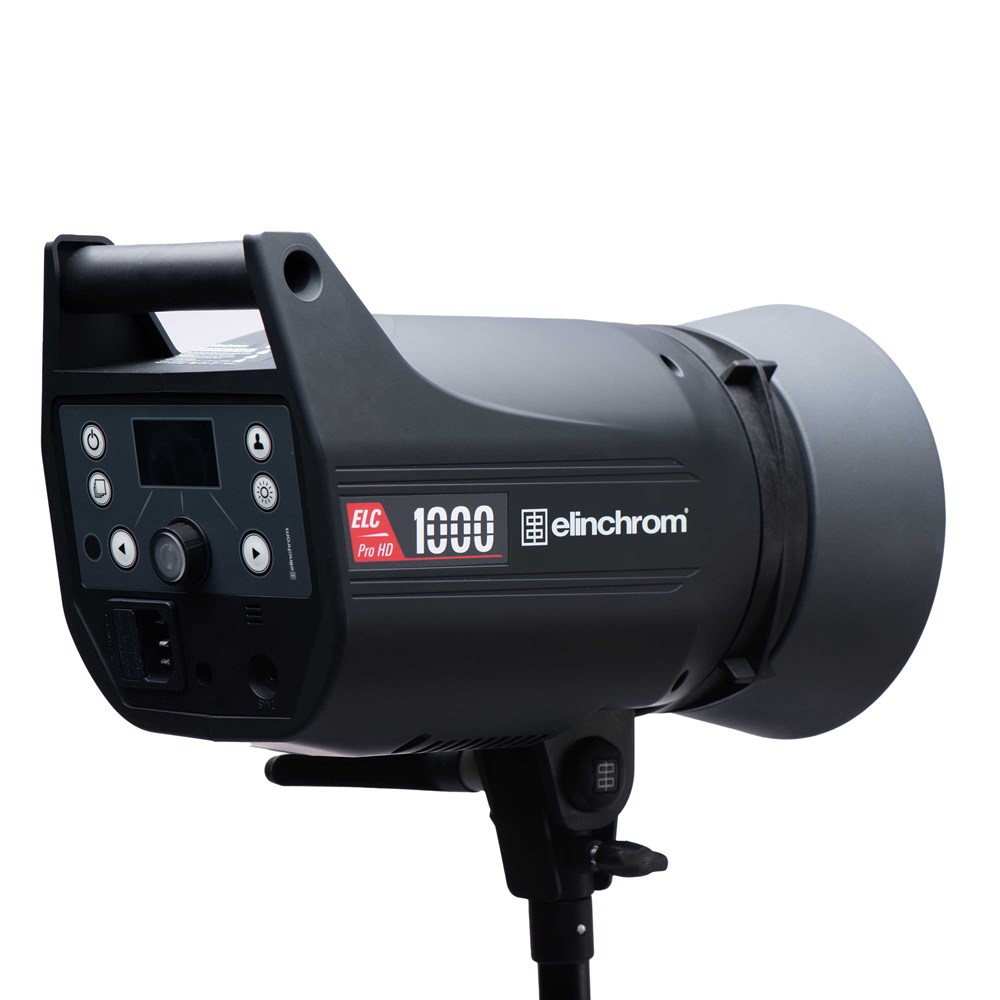

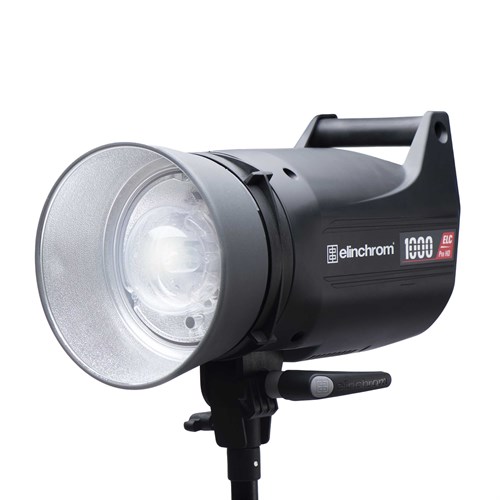

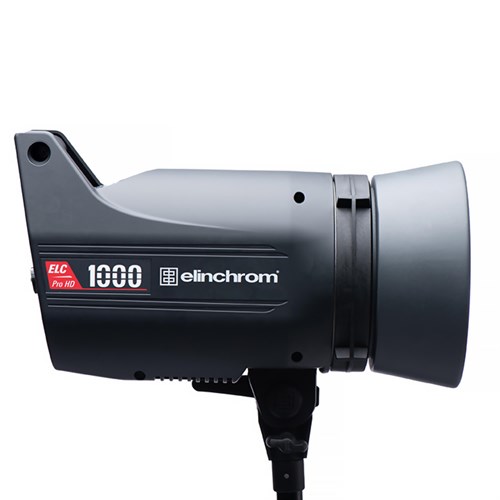

Elinchrom ELC PRO HD 1000/1000 To Go Set. These units are the highest performing compacts from Elinchrom. Equipped with an OLED display for an easy and precise user expe-rience the ELC Pro HD benefits from cutting edge technology. Recycling times are lightning fast at 1.2 seconds to full power while Swiss precision guarantees consistent power time after time, shot after shot. But hardware isn’t all. The software built into this unit gives you the freedom to configure the ELC to your individual style of shooting, for every application. This set includes the latest Elinchrom Skyport transmitter Plus. A strong and robust design which enables photographer to simply trigger and adjust flash power up to 200 m (656 feet) away, optimize reception by its swivel functionality and is powered by AA batteries.
- Lightning fast recycling
- Navigate with ease
- Superfast flash durations
- Widest power range
- Perfect color and exposure accuracy
Features
- Superfast flash durations across the complete power range with visual confirmation on the OLED display
- ELC Pro HD 1000: up to 1/5260s flash duration
- Huge power range - 8 f-stops
- User selectable and even shorter recycling times. Now you will never miss a shot!
- Even better colour and power stability

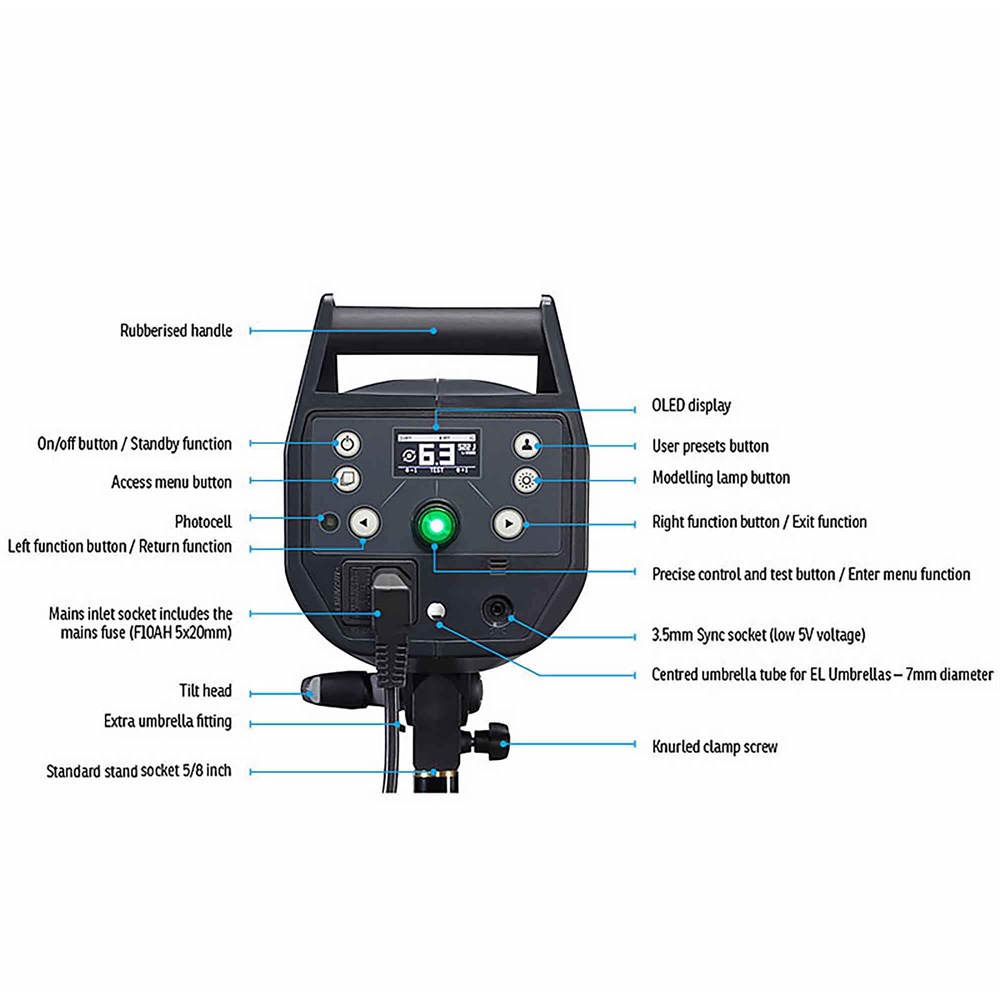

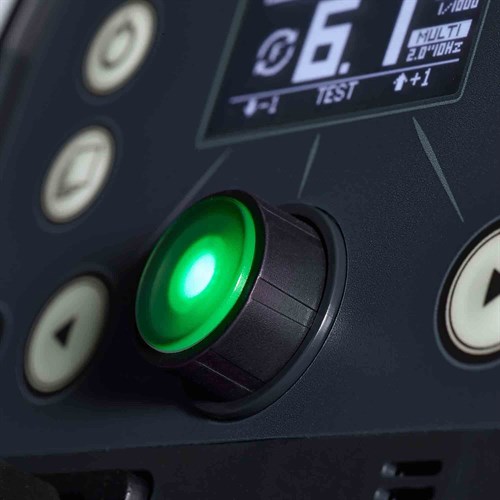

- Unique OLED power display for information and clarity
- Three unique creative modes; Strobo mode, up to 20 Hz
- Delayed mode, from 0.001 – 10 s, for second curtain sync and other effects
- Sequence mode, up to 20 units can be synchronized in sequence to keep up with the fastest motordrive at up to the full power of the flash
- All special features utilize the full flash curve with normal colour balance

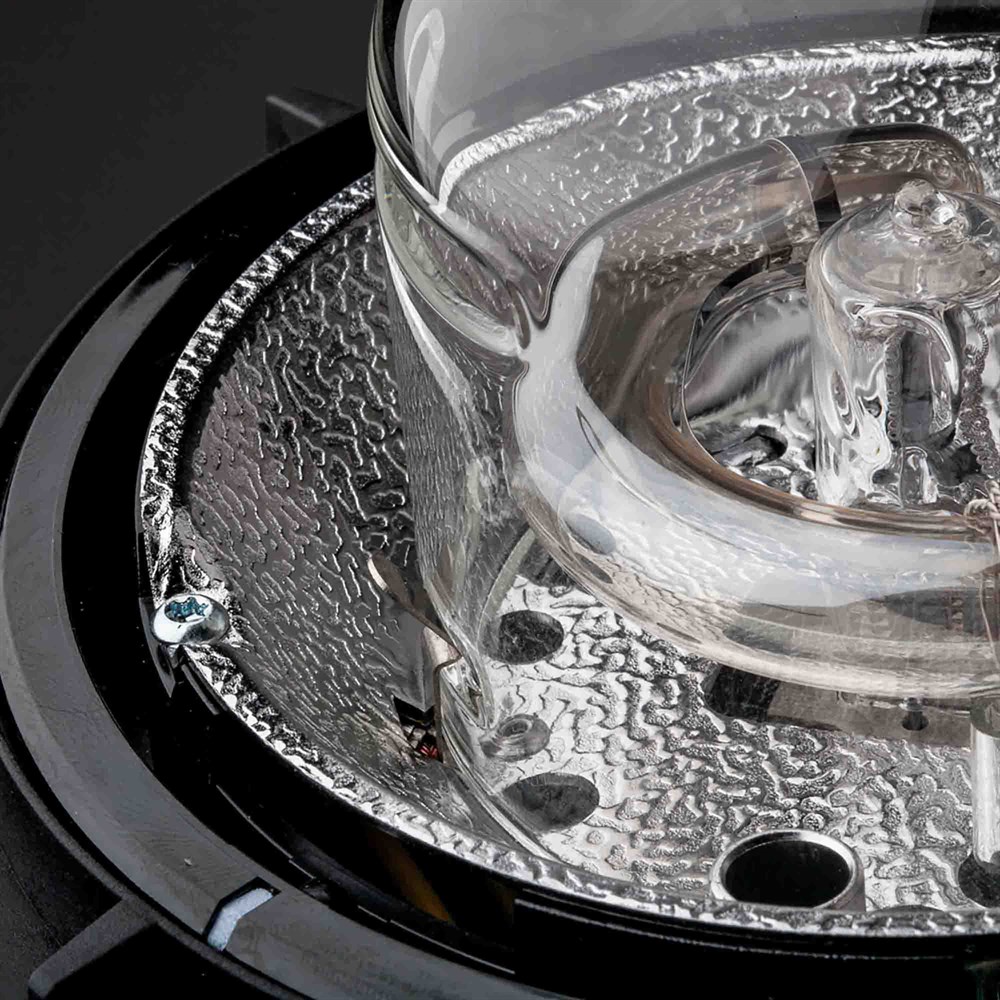

- User replaceable plug-in flashtube
- Multi-voltage auto-detection : 90-270 V (excluding modelling lamp)

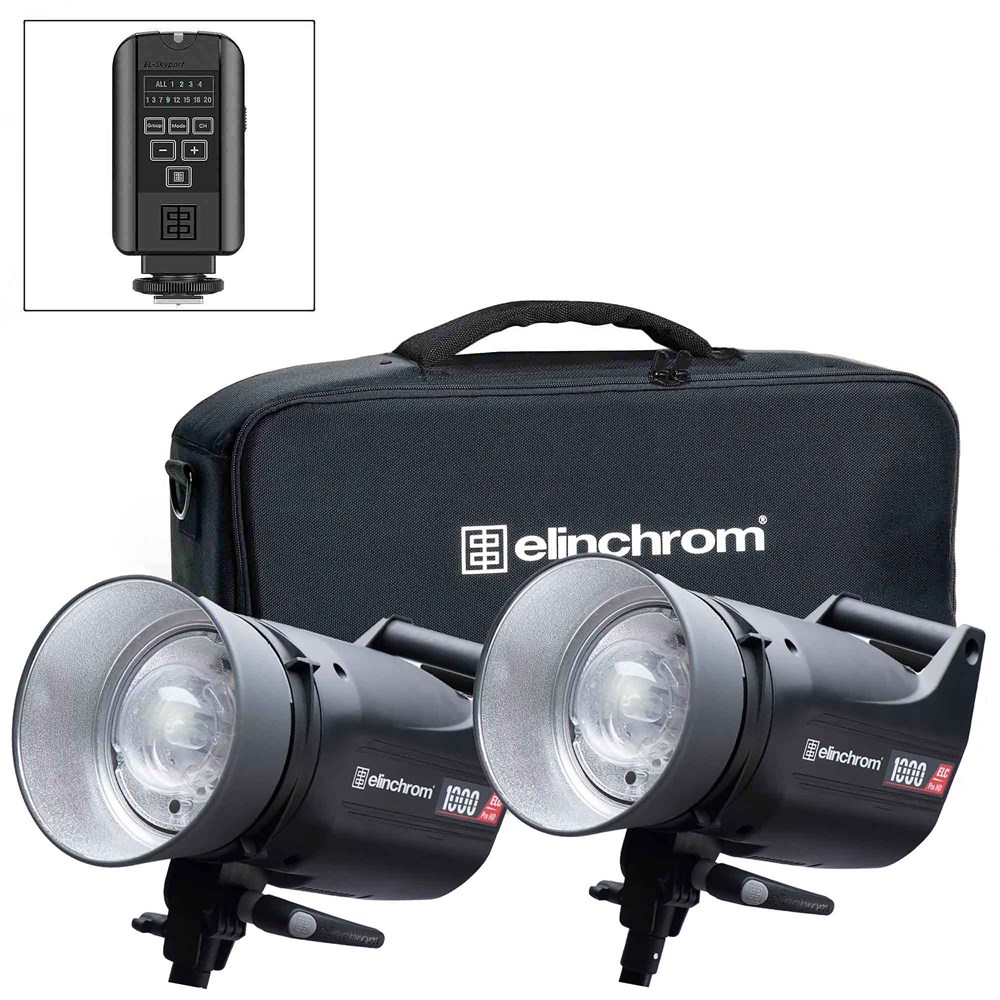

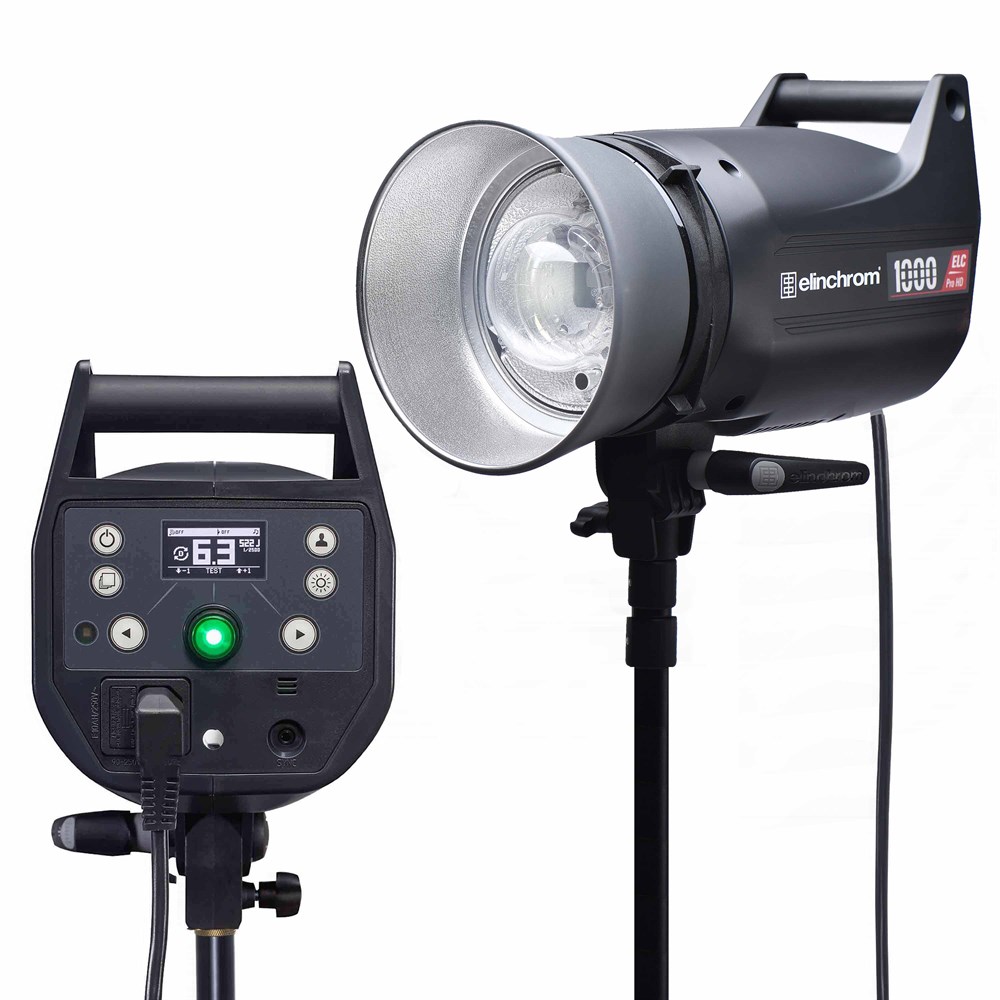

Set configuration

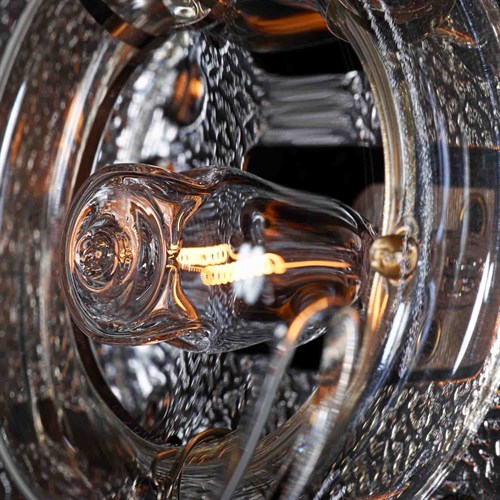

- 2x ELC Pro HD 1000; incl. 300 W lamp*, protective cap, sync cord and mains cable
- 2x Glass dome transparent
- 2x Wide reflector 16 cm 90°
- 1x EL-Skyport Transmitter Plus
- ProTec Location Bag
* Note: Use only the EL-23022 modelling lamp with the ELC Pro HD. Similar lamp models may be available on the market, but they do not meet Elinchrom's specifications. Using incorrect lamps can cause serious damage to your flash unit. To ensure proper functionality and maintain your warranty, always use the original EL-23022 component.
Specifikationer ELC 500
| Specification |
Elinchrom ELC 500 Pro HD |
Elinchrom ELC 1000 Pro HD |
| Energy |
522 Ws |
1045 Ws |
| F-stop (1m, ISO100, Refl 48°) |
f/64,8 |
f/90,4 |
| |
|
|
| Power range f-stop |
7 f-stop |
8 f-stop |
| Power range Ws |
7-522 Ws |
7-1044 Ws |
| Power range Elinchrom scale |
0,1-6,3 |
0,1-7,3 |
| Power increments |
1/10 f-stop |
1/10 f-stop |
| |
|
|
| Flash duration t=0.5 Max power |
1/2330 sec |
1/1430 sec |
| Flash duration t=0.5 Min power |
1/2940 sec |
1/2780 sec |
| Best Flsh duration at power |
3,1 (1/5000 sec) |
3,6 (1/5260) |
| Flash modes |
Strobo, Delay Sequence |
Strobo, Delay Sequence |
| Auto Power dumping |
Yes |
Yes |
| Max Flashes per sec at min power |
20 flashes/sec |
20 flashes/sec |
| Recycling Slow |
2.0 sec |
4.0 sec |
| Recycling Default |
0,75 sec |
1,5 sec |
| Recycling Fast |
0,6 sec |
1,2 sec |
| Color temperature in Kelvin at max power |
5600 K |
5600 K |
| Color temperature Stability |
± 200 K |
± 200 K |
| Power Stability |
± 0,1% |
± 0,1% |
| Multi-Voltage |
90 - 265V |
90 - 265V |
| |
|
|
| Modelling lamp |
Halogen 300 W /GX 6,35 |
Halogen 300 W /GX 6,35 |
| Color temperature Modelling lamp |
3400 K |
3400 K |
| |
|
|
| Flash tube |
Plug-in, EL-24080 |
Plug-In, EL-24080 |
| Skyport Built in |
Built in, 20 Frekvenser / 4 Grupper |
Built in, 20 Frekvenser / 4 Grupper |
| Skyport Range |
60m Indoor, 200m Outddor |
60m Indoor, 200m Outdoor |
| Sync socket |
3,5mm (5V) |
3,5mm (5V) |
| Built in Fan |
Yes, electronically intelegent temperarture controlled fan |
Yes, electronically intelegent temperarture controlled fan |
| Protection class |
IP20 |
IP20 |
| Umbrella fitting |
Centred, for Elinchrom 7 mm + Extra for larger umbrellas |
Centred, for Elinchrom 7 mm + Extra for larger umbrellas |
| Power consumption Slow |
350 W |
350 W |
| Power consumption Default |
700 W |
700 W |
| Power consumption Fast |
875 W |
875 W |
| Size |
31,5 x 14 x 21 cm |
31,5 x 14 x 21 cm |
| Weight |
2,5 Kg |
2,5 Kg |
